Chambres calorimétriques pour équipements frigorifiques

pour les tests d'efficacité énergétique des réfrigérateurs, vitrines réfrigérées, etc.

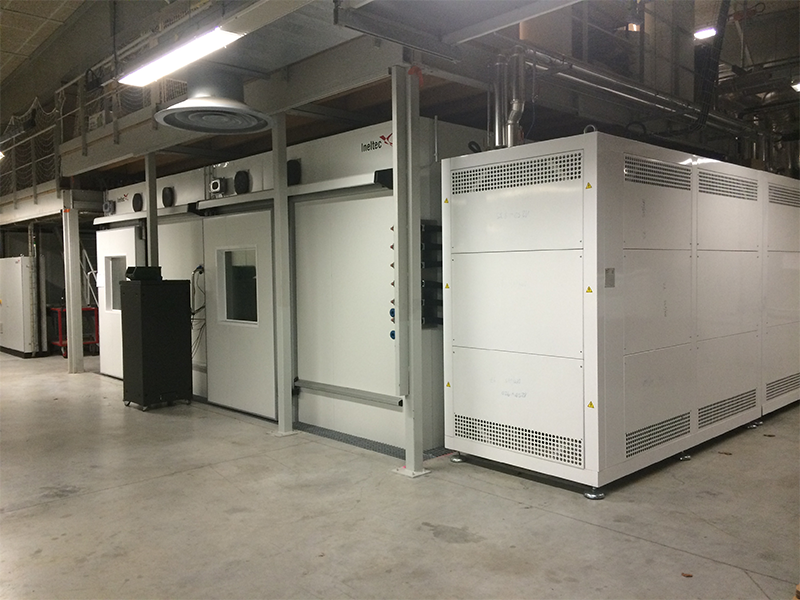

Chambre d'essai calorimétrique isolée et conditionnée en température et humidité. Il est conçu pour étudier et mesurer l'efficacité énergétique des réfrigérateurs, des vitrines réfrigérées, des congélateurs, etc. avec système d'acquisition de la température, de l'humidité et de la consommation d'énergie.

Réalisation de tests selon les normes EN ISO 22041 et EN ISO 23953-2.

Caractéristiques
5ºC à +50ºC
10-95%
Normes

EN ISO 22041 et EN ISO 23953-2

. .

Modular structure assembled with thermo-injected polyurethane sandwich panels, highly resistant and removable, allowing for future relocation or enlargement.

Exterior:  Outer face of the panels in galvanized sheet steel and white lacquered

  • Access door:  Hermetically sealed isothermal siding door with manual opening system

Interior: Inner face of the panels in AISI-304 stainless steel sheet.

  • Interior illumination: By LED projectors
  • Access holes: Walls bushing will be installed for the electric and mechanic connections between the chambers and the measuring elements

Insulation:

  1. Density: 41-42Kg/m3
  2. Coefficient of thermal conductivity: Walls and roof 0,021 Kcal/m. hºC | Suelo: 0,021 Kcal/m. hºC
  3. Coefficient of thermal transmisión.Walls and ceiling: 0,31 Kcal/m. hºC | Suelo: 0,21 Kcal/m. hºC

L'équipement est accompagné du groupe frigorifique, composé de 1 compresseurs de marque Bitzer.

The touch screen PC has the PROCAM-WIN installed. It is easy and intuitive software which performs programming tasks, acquisition, records, control and analysis of the results.

  1. Manual or automatic programming
  2. Possibility of programming date and time of the test
  3. It allows recording notes during the tests
  4. Different access levels
  5. Maximum 11 operators
  6. Display and recording of tests in a graphical or tabular table
  7. Export to excel or similar
  8. Setting of minimum and maximum alarms for temperature and humidity for each section
  9. It includes recording screen, incidences and maintenance.
